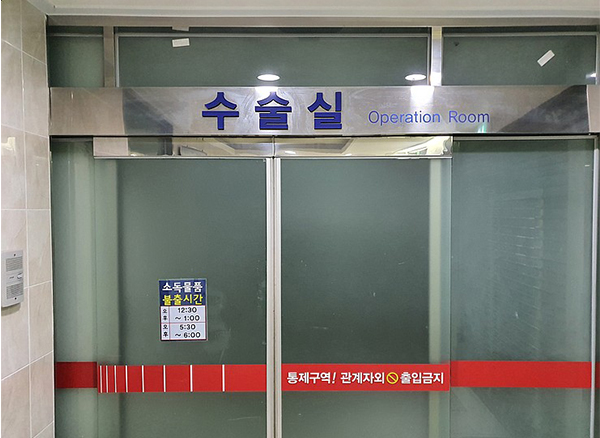

Usually, the ESD vinyl sheet is popular used in the surgery rooms considering the anti-bacteria requirements. Because the size of ESD vinyl sheet is 2m*20m(Width*Length), and it is fewer welding rod seams during installation. But it is not absolutely. Different market customers have different preferences. We need ESD flooring reconstruction after a long time service. Here is a latest project case from our Korea customer, it is about flooring reconstruction of old Surgery room. It uses our esd tiles size 600mm*600mm, color xyd-601.
Here are the steps we should do and the installation pictures as reference:
Step 1:

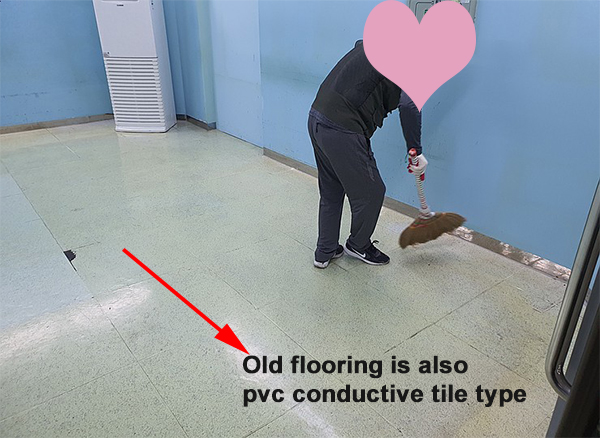

Clean floors at the construction site
Step 2:

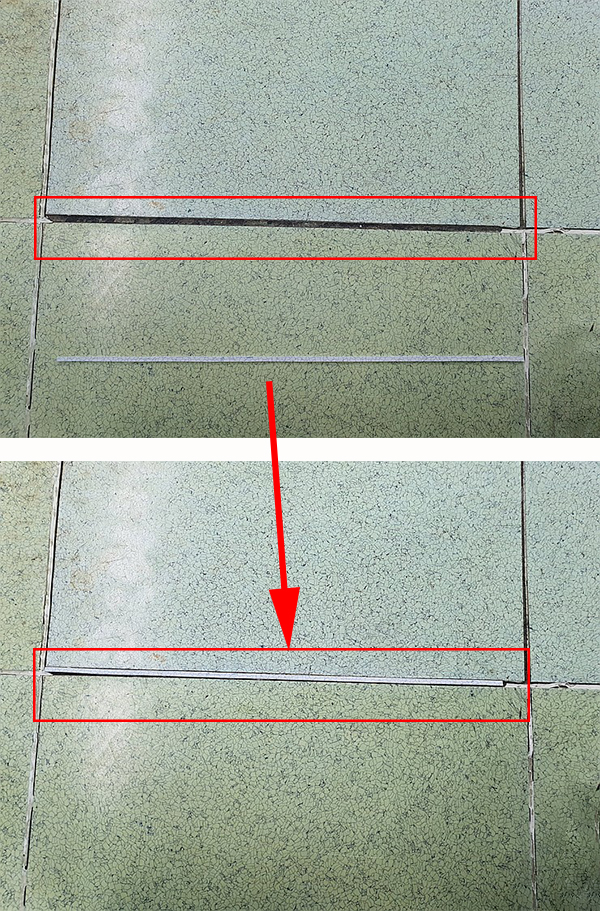

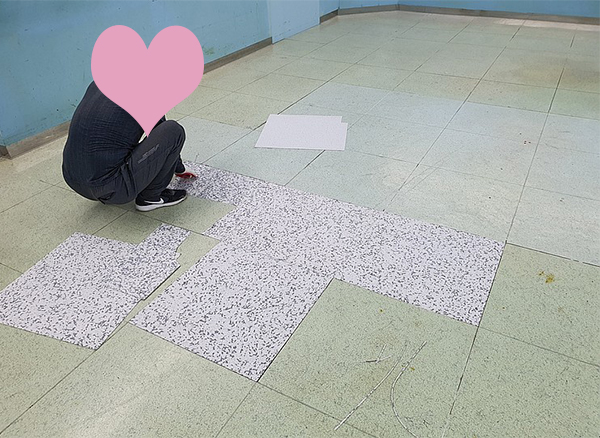

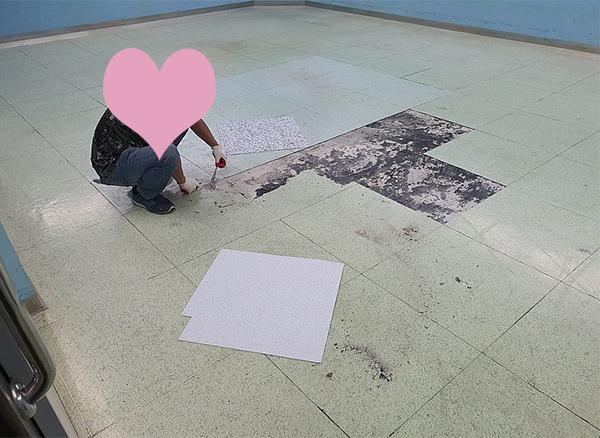

Remove severely damaged tiles and cover them with tiles and fragments of the same size.
Reinforce it, make smooth and constant.
Step 3:

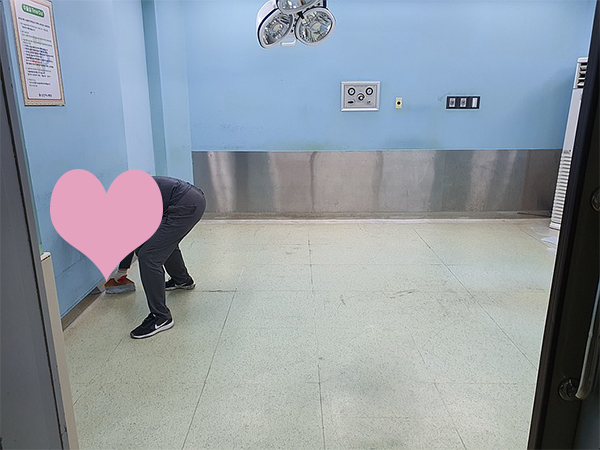

Spread the conductive adhesive evenly on the floor and cure for 10 to 20 minutes.
Wait for the adhesion to rise.
Step 4:

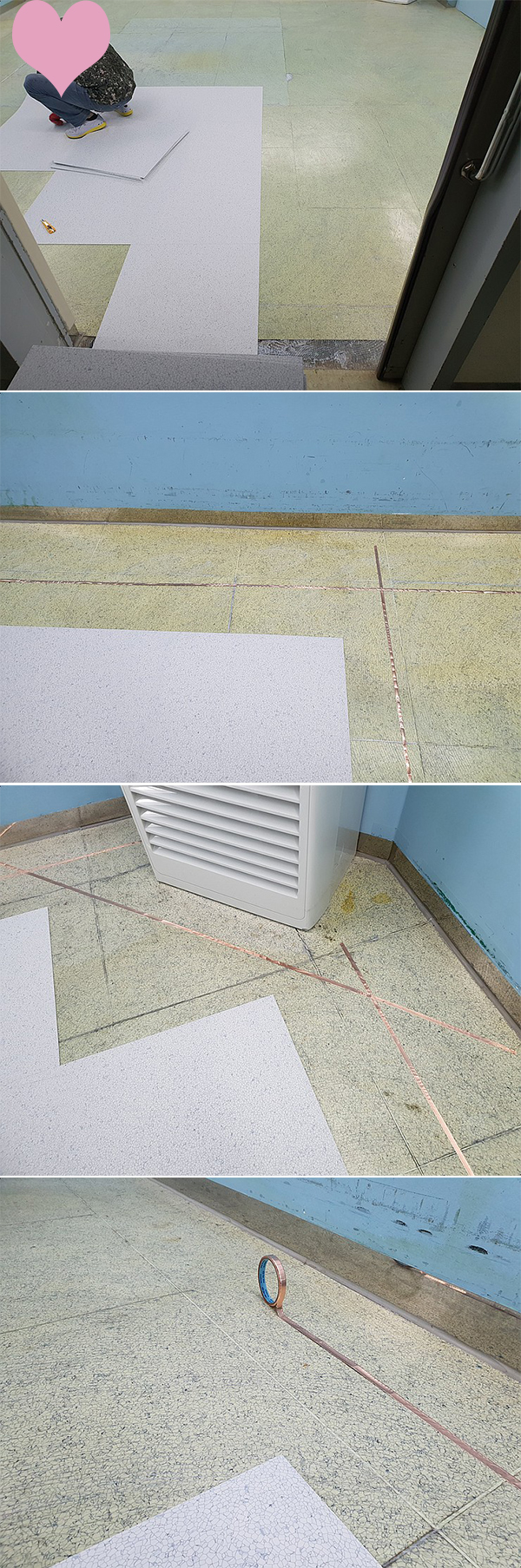

Glue the tiles from the center line, and put a copper tape inside the tiles to ground.
Step 5:

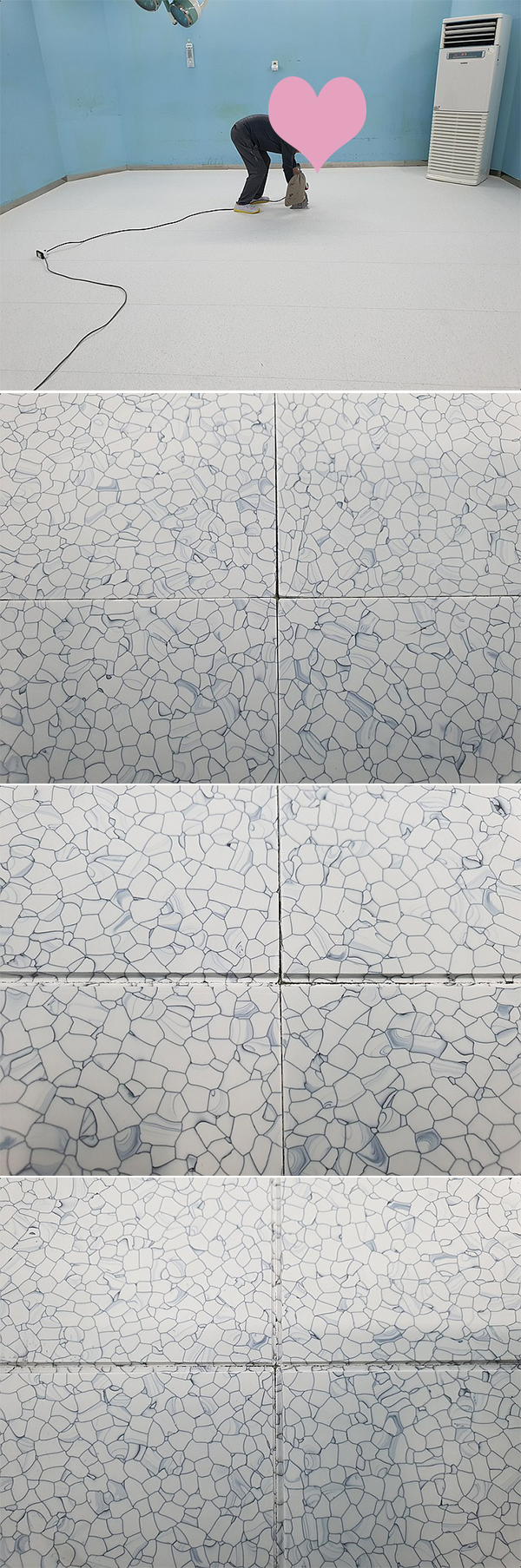

Using a tile V-shaped cutter, cut about 2/3 of the floor to open V-Shaped groove.
Step 6:

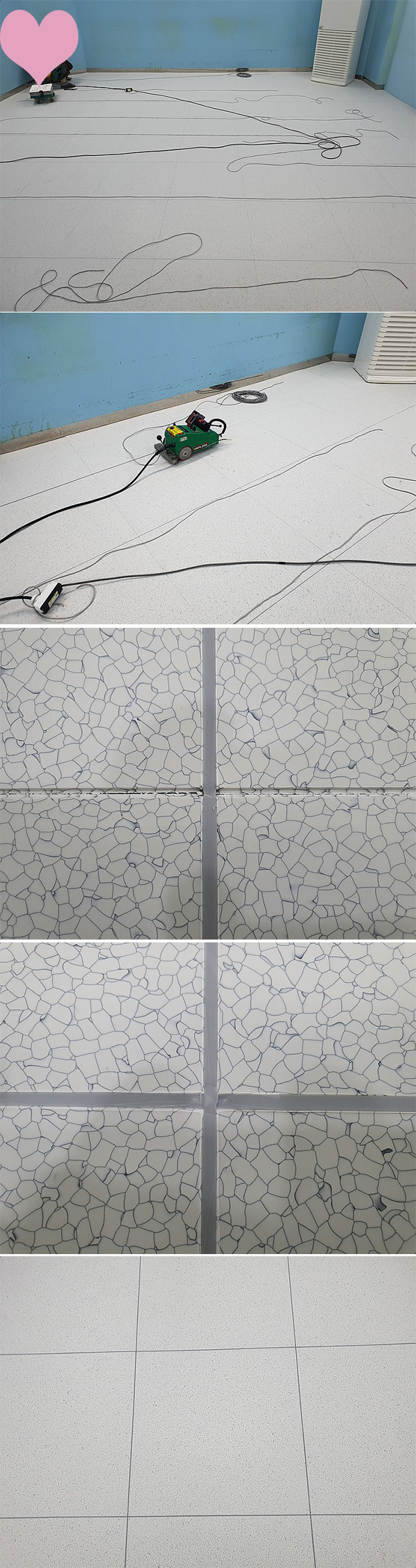

Laying welding rods
Step 7:

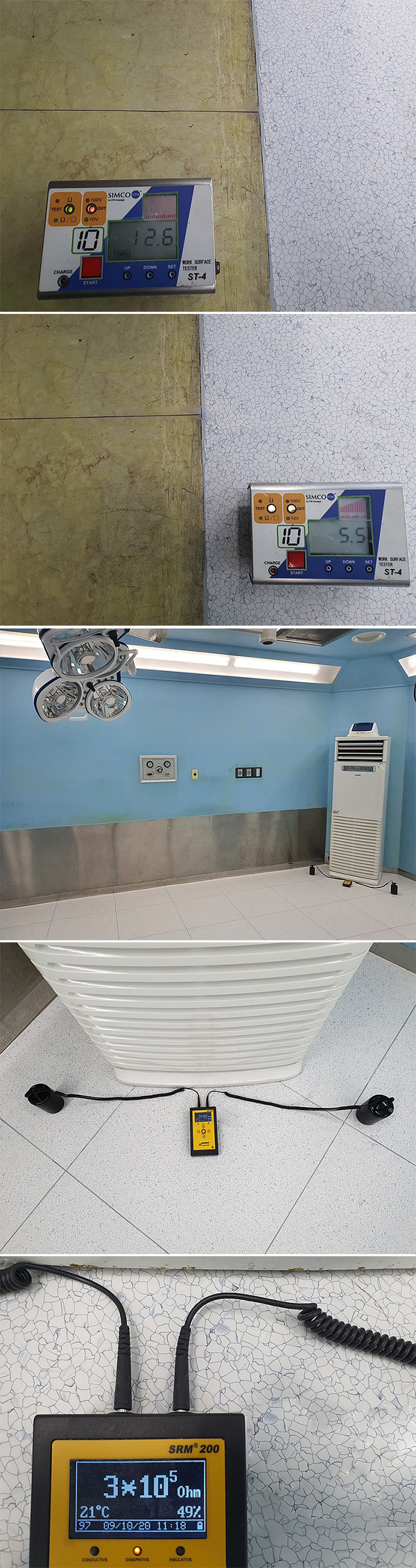

Test electronic resistance and comparing ordinary old floors with newly built esd floors
Step 8:

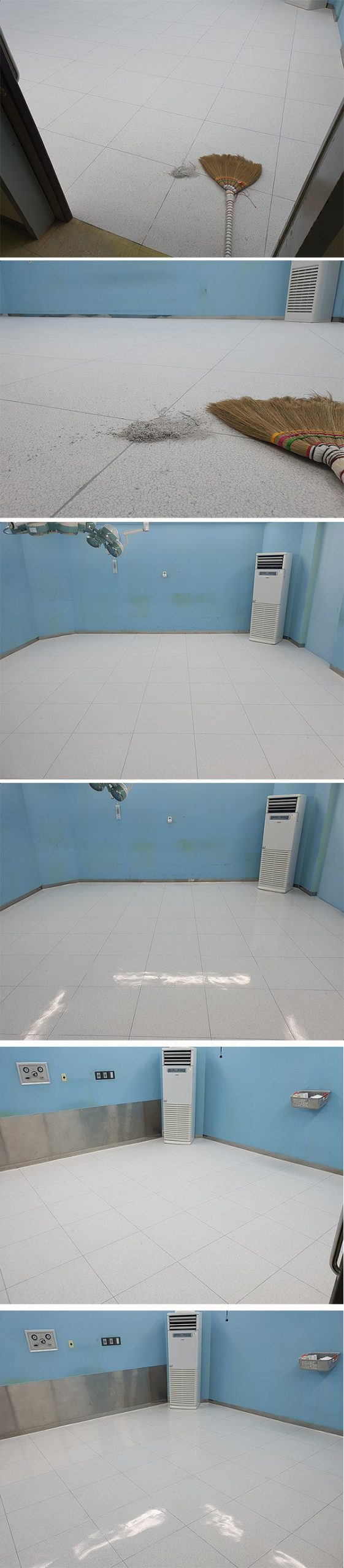

Remove the dust on the installed floor and cover it with conductive wax
This is the ESD flooring reconstruction project. For more info, pls visit the related website: PVC vinyl sheet in roll used in Operating rooms link
